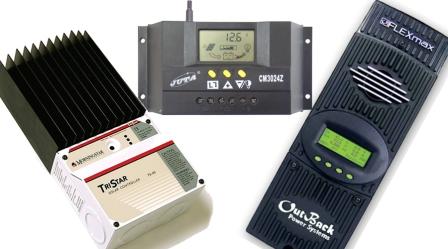

- Charge Controllers
- Maximum Point Power Tracker
30 Amp/hour Juta Solar Regulator/Charge Controller with LCD Screen. 12/24 Volt output.
45 Amp/hour Epsolar Solar MPPT Charge Controller with LCD Screen 12/24/48 Volt output
60 Amp/hour Morningstar Solar Charge Controller 12/24/48 Volt output
60Amp/hour I-Panda Solar MPPT Charge Controller 12/24/48V with LCD Screen
Regulator 10 Amp/hour 12/24V output Wellsee
Regulator 12 Amp/hour 12/24V output Juta
Regulator 15 Amp/hour 12/24V output Juta
Regulator 20 Amp/hour 12/24V output Phocos Day/Night Switch
Regulator 20 Amp/hour 12/24V output Solar Charge controller
Battery Reverse Current Protection
Short Circuit Protection
Battery Reverse Polarity Connection Protection
Schematic Diagram: Picture 2 shows typical 12V battery solar charge system V-A curve.
Normal Solar Charge Controller: Solar Panel works at point A state, the solar panel working voltage is a little higher than battery voltage.
Charge Voltage: UA=13.2V
Charge Current:: IA=9.8A
Charge Power: PA=13.2*9.8=129.36w
Area in drawing: ???
MPPT Solar Charge Controller: Solar Panel works at point B state, the solar panel working voltage much higher than battery voltage.
Charge Voltage: UB=18.4V,
Charge Current:: IB=9.3A
Charge Power: PB=18.4*9.3=171.12w
Regulator 30 Amp/hour 12/24V output Juta With LCD Screen
